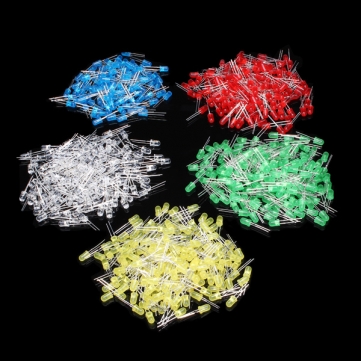

3 mm 5 mm
Working current 20 (mA)
Red Yellow Blue Green White Red Yellow Blue Green White
Working voltage 1.9V-2.1V 1.9V-2.1V 3.0V-3.2V 2.1V-3.0V 3.0V-3.2V 1.9V-2.1V 1.9V-2.1V 3.0V-3.2V 3.0V-3.2V 3.0V-3.2V
MCD 300-400 300-400 500-700 400-500 6000-8000 300 300 700-900 400-500 12000-14000
Wave length 620-625 588-590 455-465 567-570 Color temperature 8000 630-635 588-590 460-465 567-570 Color temperature 8000

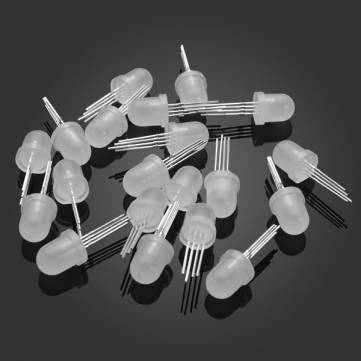

RGB LED Common Anode 8 mm
Red Green Blue
Working current 20 (mA)
Luminous Intensity: 200-300 800-1000 300-400
Voltage 2.0V-2.2V 3.2V-3.4V 3.0-3.2V
dominant wavelength 622-625nm 520-525nm 465-468nm
